CD0623T01
- Rated Voltage1.5 V
- Rated Current0.00073 A
- Working Stroke0 mm
- Operating Force磁场20GS-40GS
- DimensionsØ32 x 30 mm

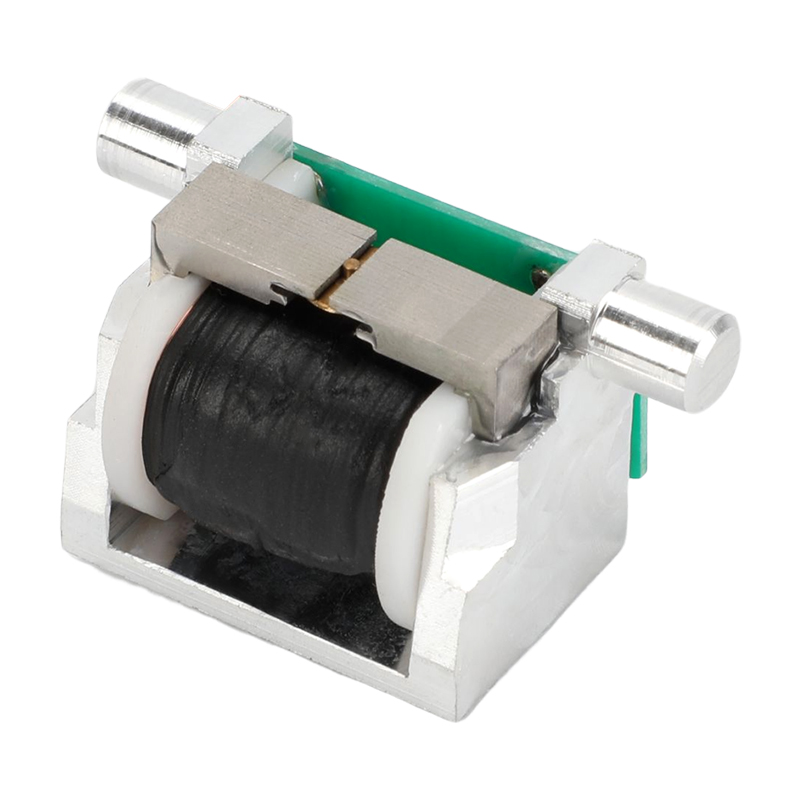

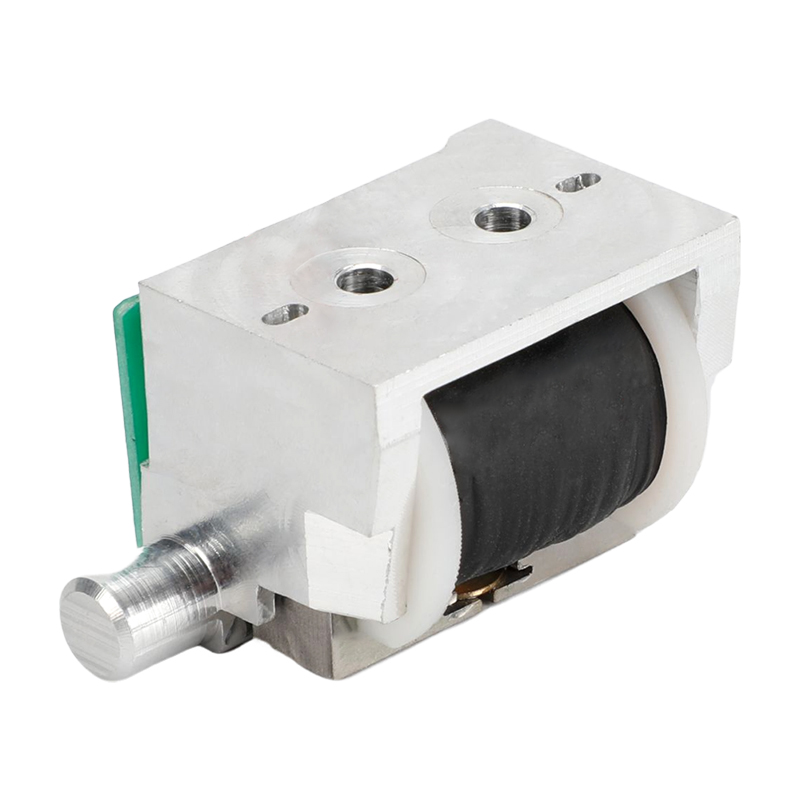

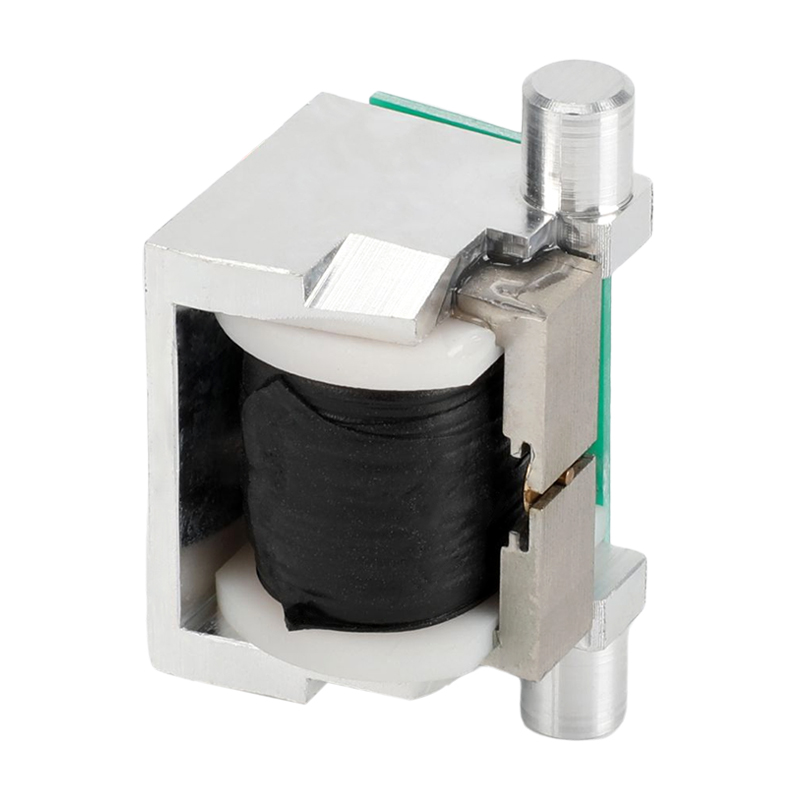

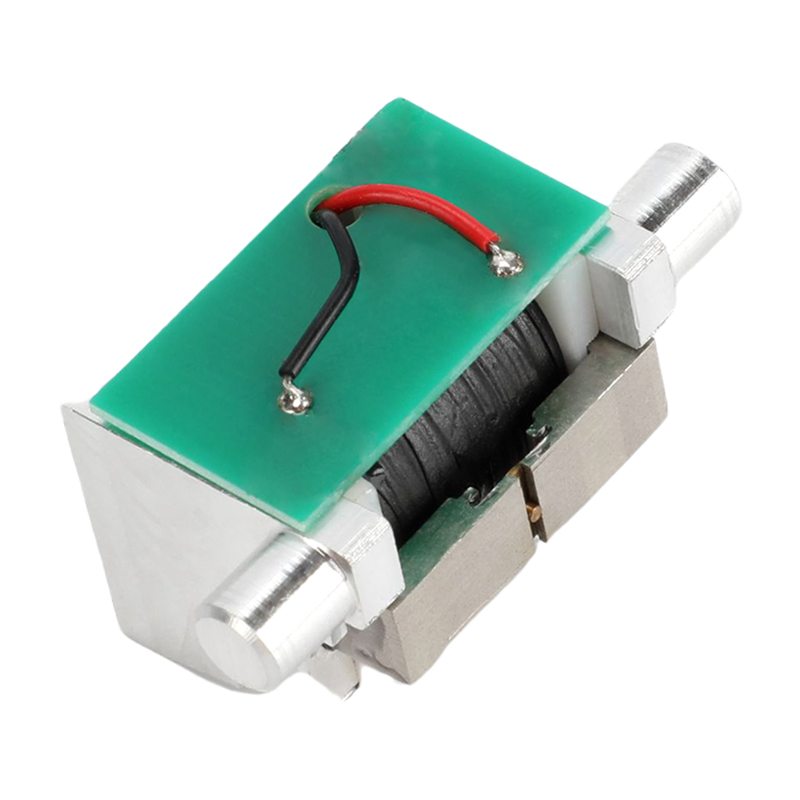

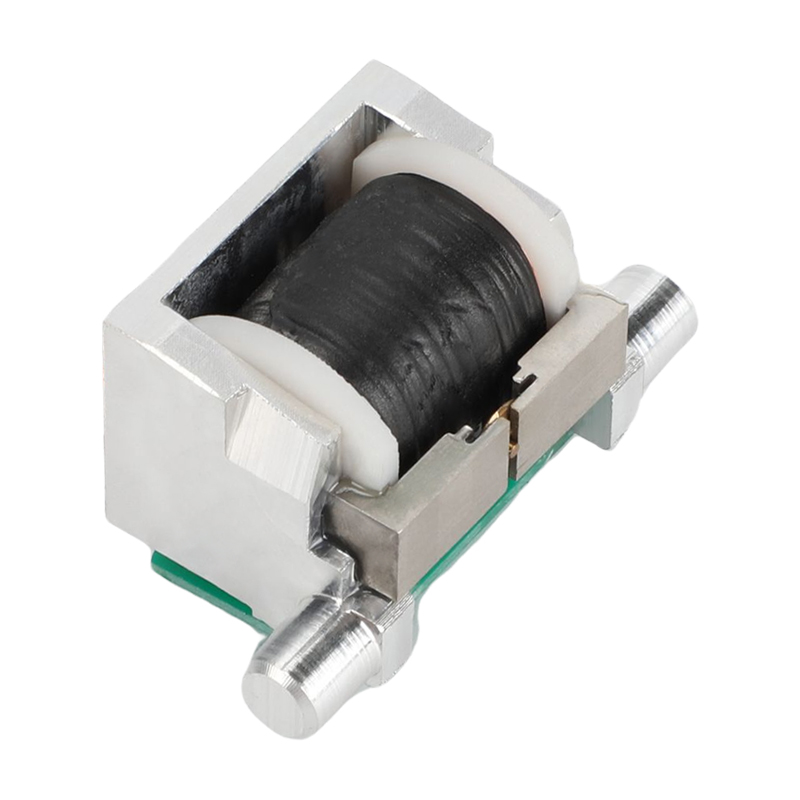

Product Gallery
Specifications
1.基础参数(RATED VOLTAGE)
1-1 额定电压(Rated Voltage)：DC1.5V
1-2 额定电流(Rated Current)：0.73mA
1-3 工作行程(Working Stroke)：0mm
1-4 工作力量(Working Force)：磁场20Gs-40Gs
1-5 外形尺寸(Overall Dimensions)：φ32*30
Customization
Electrical Parameters
Rated voltage, current, power, duty cycle, and coil specifications can be customized to match your control system.
Force & Stroke
Pulling force, pushing force, holding force, and working stroke can be adjusted based on your required motion and load.
Dimensions & Mounting
Body size, plunger structure, bracket design, mounting holes, and installation space can be customized for your equipment.
Lead Wires & Connectors
Wire length, terminal type, connector, cable direction, and insulation requirements can be configured for assembly.
Operating Conditions
Operating frequency, temperature rise, noise level, service life, and reliability targets can be optimized for your application.
Application-Specific Design
Share your drawing, sample, or motion requirements. Kinlore supports custom solenoid development from prototype to batch production.
