CD0626T01
- Rated Voltage70 V
- Rated Current0.16 A
- Working Stroke3.5 mm
- Operating ForcePull Force > 2 N
- Dimensions25.6x20.5x14.5 mm
Applications

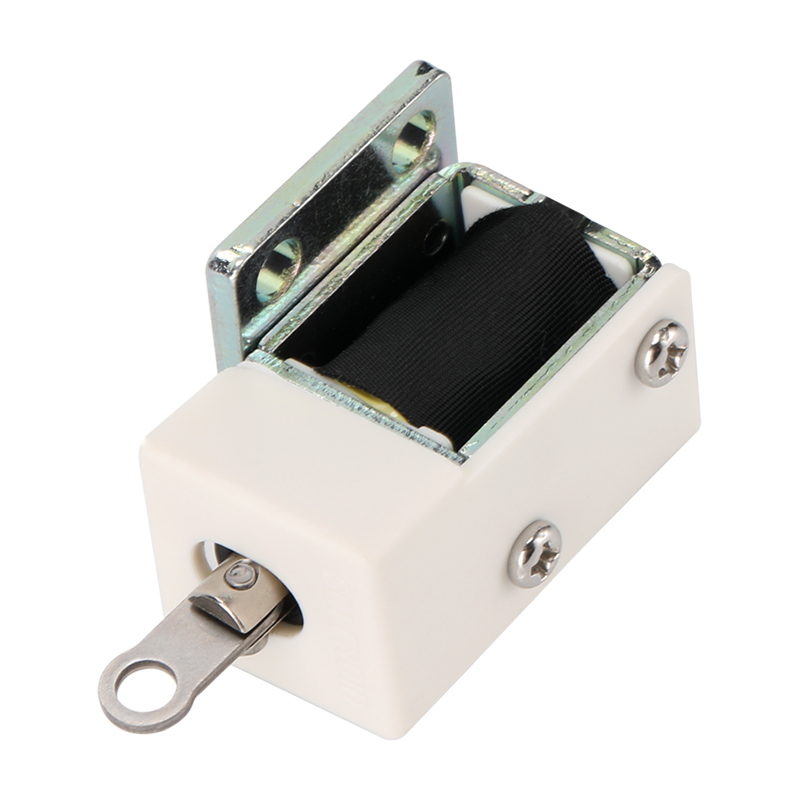

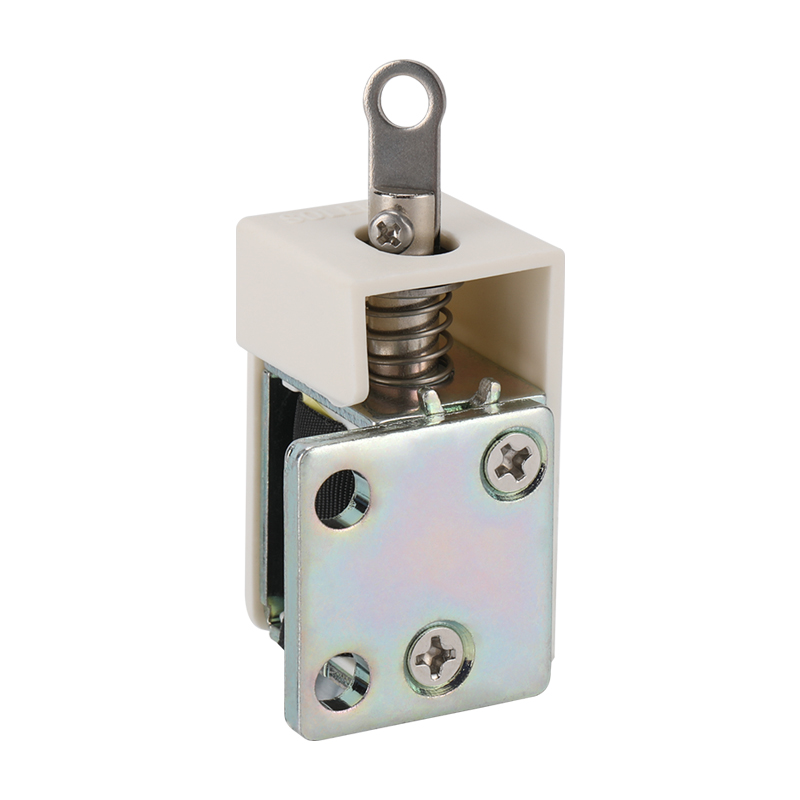

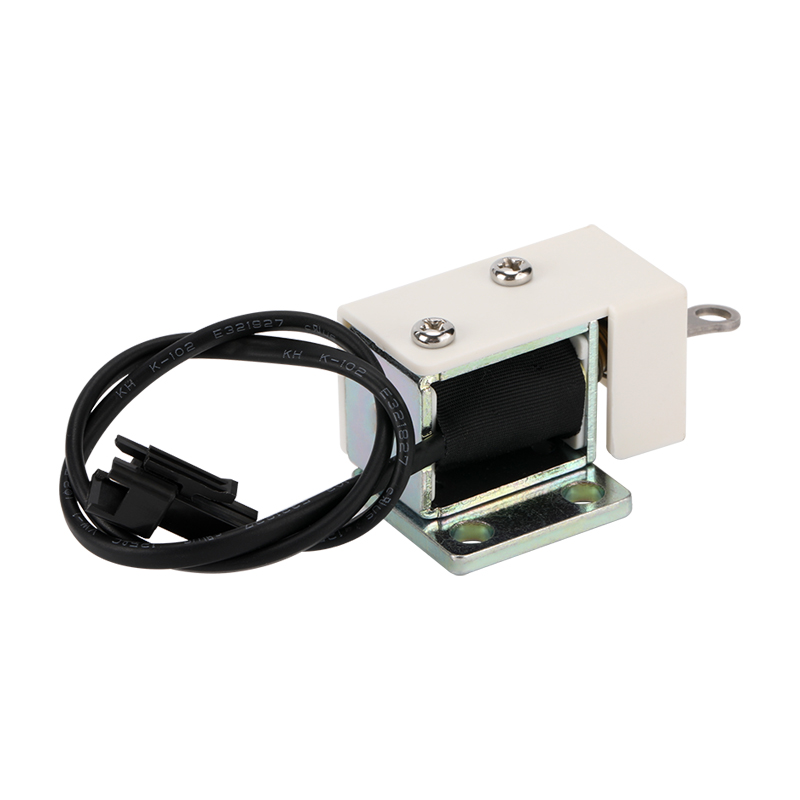

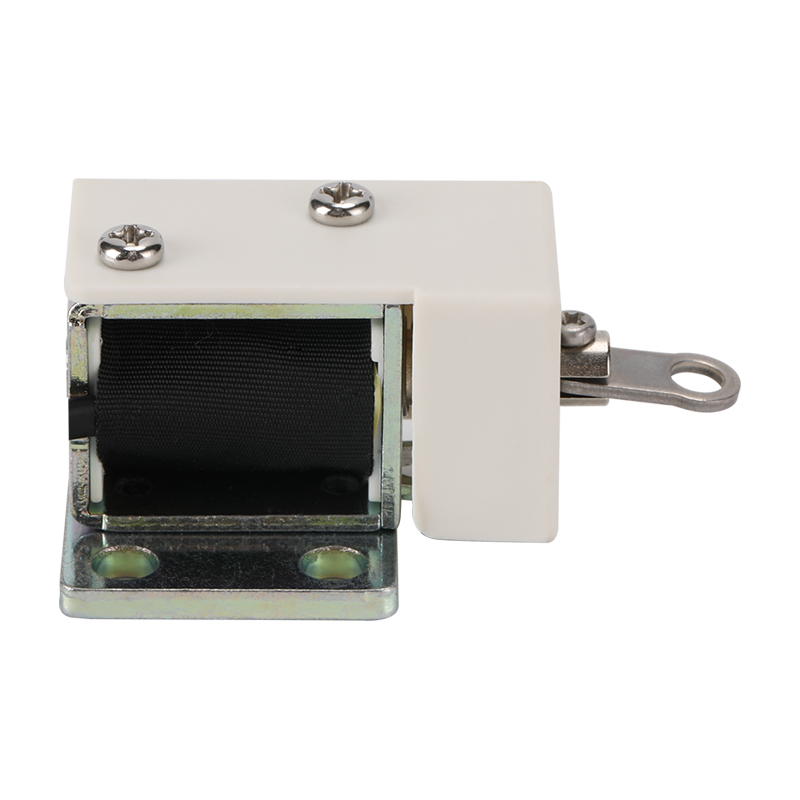

textile industryProduct Gallery
Specifications
Basic Parameters
1-1 Rated Voltage: DC70V
1-2 Rated Current: 0.16A
1-3 Working Stroke: 3.5mm
1-4 Working Force: Pulling Force ＞ 200gf
1-5 Overall Dimensions: φ25.6*20.5*16.5
Customization
Electrical Parameters
Rated voltage, current, power, duty cycle, and coil specifications can be customized to match your control system.
Force & Stroke
Pulling force, pushing force, holding force, and working stroke can be adjusted based on your required motion and load.
Dimensions & Mounting
Body size, plunger structure, bracket design, mounting holes, and installation space can be customized for your equipment.
Lead Wires & Connectors
Wire length, terminal type, connector, cable direction, and insulation requirements can be configured for assembly.
Operating Conditions
Operating frequency, temperature rise, noise level, service life, and reliability targets can be optimized for your application.
Application-Specific Design
Share your drawing, sample, or motion requirements. Kinlore supports custom solenoid development from prototype to batch production.
