Double Latching Solenoids CD0726N01
- Rated Voltage12 V
- Rated Current1.2 A
- Working Stroke5 mm
- Operating ForceHolding Force ≥ 4 N
- Dimensions35x17x14 mm

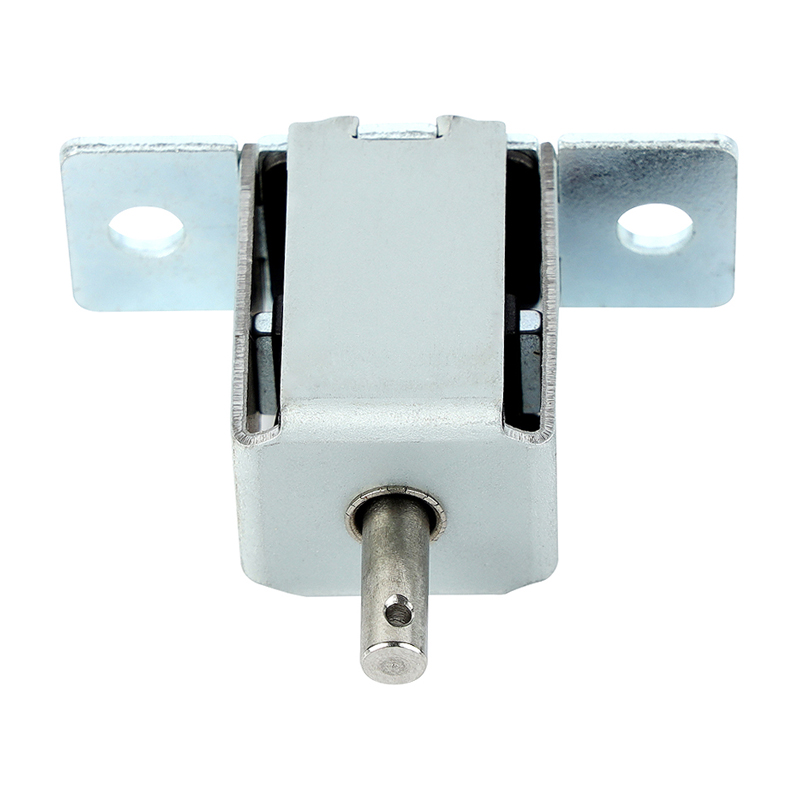

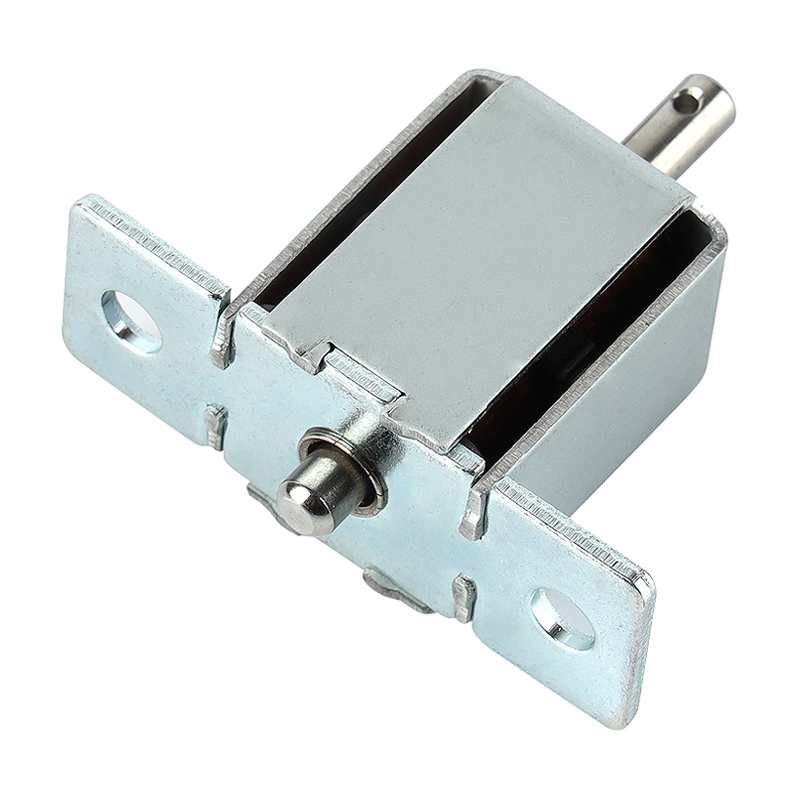

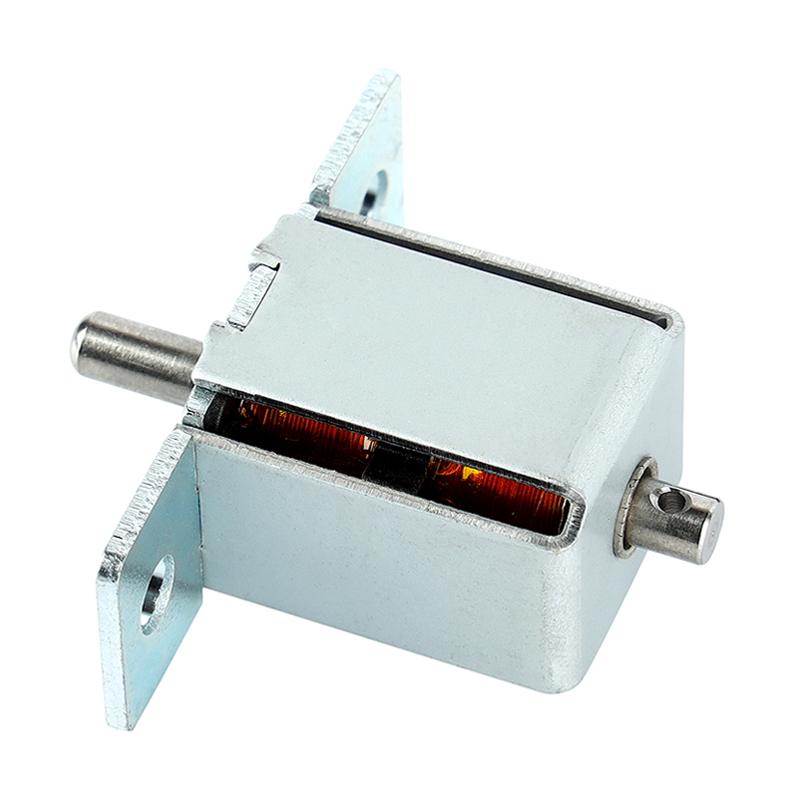

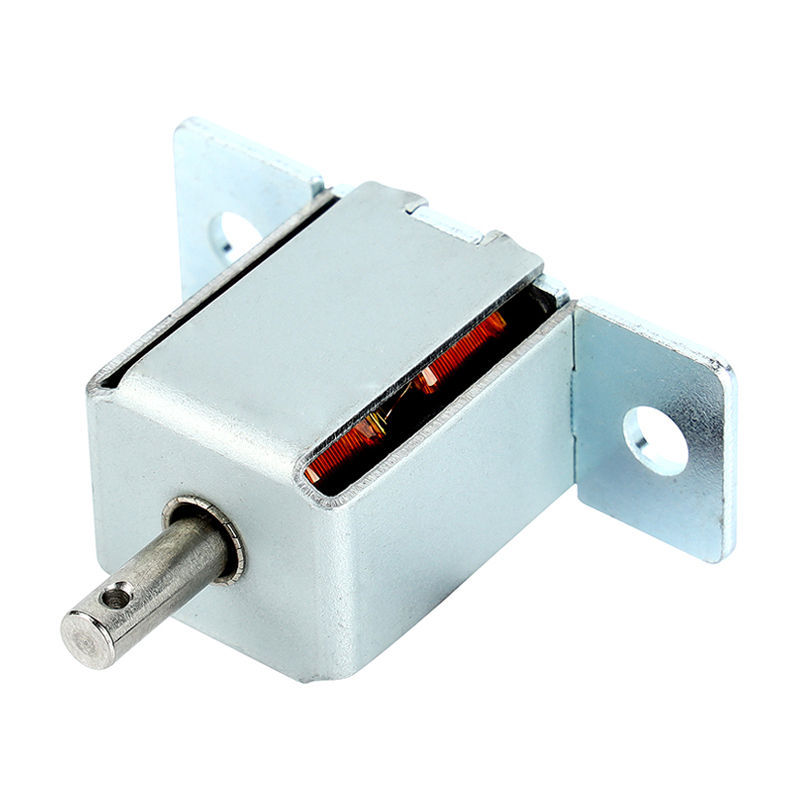

Product Gallery
Specifications
1.基础参数(RATED VOLTAGE)
1-1 工作环境.温度(OPERATLNG AMBIENCE LEMP/HUMIDITY): -20℃~+65℃,5%~95RH
1-2 储存环境.温度(STORE AMBIENCE IEMP/HUMIDITY): -20℃~+45℃，5%~45%RH
1-3 绝缘电阻(INSULATTON RESISTANTOR)：DC500V，≥500MΩ(线圈与骨架之间)
1-4 耐电压(DIELECTRIC STRENGTH): DC700V，50/60Hz-1秒（线圈与外壳之间）
1-5 功率(POWER): 14.4W DC12V，R=10Ω±10%
1-6 绝缘等级(INSULATION CLASS)：B级 130℃
1-7 使用电压范围(OPRATION VOLTAGE): DC12V±5%
1-8 行程-吸力(STROKE-FORCE)：0mm:≥450g (不通电保持力)
1-9 通电率(DUTY CYCLE)：10%ED 间歇型(INTERMITTENT)，通电0.05秒，断电0.5秒
1-10 寿命(LIFE): ≥50万次 DC12V 通0.05秒，断0.5秒为1次
1-11 温升(TEMPERAITURE RISE)：≤80℃ DC12V 通0.05秒，断0.5秒 1小时空载
1-12 响应时间(RESPONSE TIME): ≥50ms DC12V 行程=6mm 空载
1-13 环保(RoHS)：符合欧盟 2020/95/EC（RoHS）
1-14 引线强度(DEADING STRENGTH)：1.5Kgf-30秒，引线正常
Customization
Electrical Parameters
Rated voltage, current, power, duty cycle, and coil specifications can be customized to match your control system.
Force & Stroke
Pulling force, pushing force, holding force, and working stroke can be adjusted based on your required motion and load.
Dimensions & Mounting
Body size, plunger structure, bracket design, mounting holes, and installation space can be customized for your equipment.
Lead Wires & Connectors
Wire length, terminal type, connector, cable direction, and insulation requirements can be configured for assembly.
Operating Conditions
Operating frequency, temperature rise, noise level, service life, and reliability targets can be optimized for your application.
Application-Specific Design
Share your drawing, sample, or motion requirements. Kinlore supports custom solenoid development from prototype to batch production.
